Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - subframe, multi-link suspension, four-wheel drive
This assembly overview covers the 4MOTION Volkswagen Golf Mk7 multi-link rear subframe: front and rear bonded rubber bushes, each with their own renewal chapter, plus always-renewed bolts.

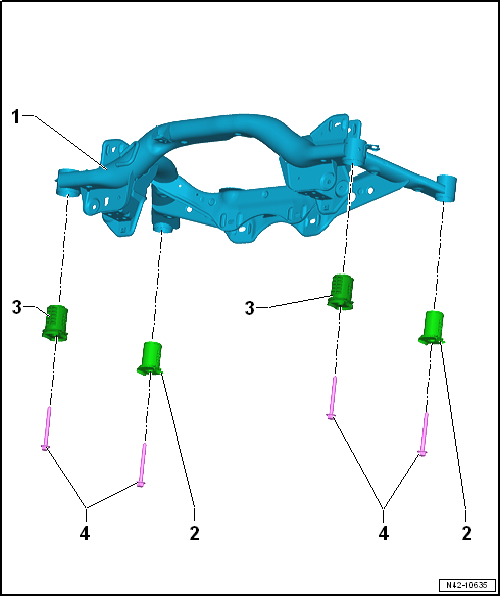

| 1 - | Subframe |
| Removing and installing subframe with attachments → Chapter. |
| 2 - | Rear bonded rubber bush |
| Renewing → Chapter. |
| 3 - | Front bonded rubber bush |
| Renewing → Chapter. |
| 4 - | Bolt |
| Renew after removing |
| 70 Nm +180° |
