Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing rear 3-point seat belt, estate, without belt tensioner

This page covers removing the Volkswagen Golf Mk7 estate rear seat belt without a tensioner — remove the bench seat, backrest, D-pillar trim and luggage compartment side trim before reaching the belt itself.

Removing
–  Remove bench seat → Chapter.
–  Remove rear seat backrest → Chapter.
–  Remove D-pillar trim → Chapter.
–  Remove luggage compartment side trim, estate → Chapter.
–  Remove outer rear seat belt guide anchor → Chapter.

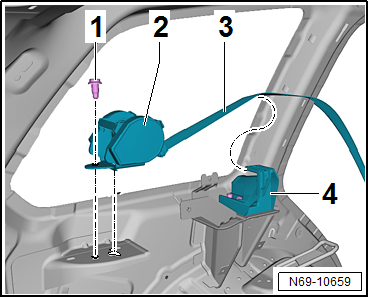

–  Remove bolt -1-.
–  Pull out seat belt -3- from under belt guide -4-.
–  Remove belt inertia reel -2- from mounting.
Installing
Install in reverse order, but note the following:
–  If parts of the belt system are removed because of an accident, the belt system bolts must be renewed.
Specified torques
  → Chapter „Assembly overview - three-point seat belt, estate, without belt tensioner“


Removing and installing rear 3-point seat belt, estate, without belt tensioner

    Questions & answers

    Removing and installing rear 3-point seat belt, estate, without belt tensioner — Volkswagen Golf Mk7

    How do I remove the Golf Mk7 estate rear belt (no tensioner)?
    Remove bench seat, rear backrest, D-pillar trim and luggage side trim. Then unbolt the belt guide and inertia reel.
