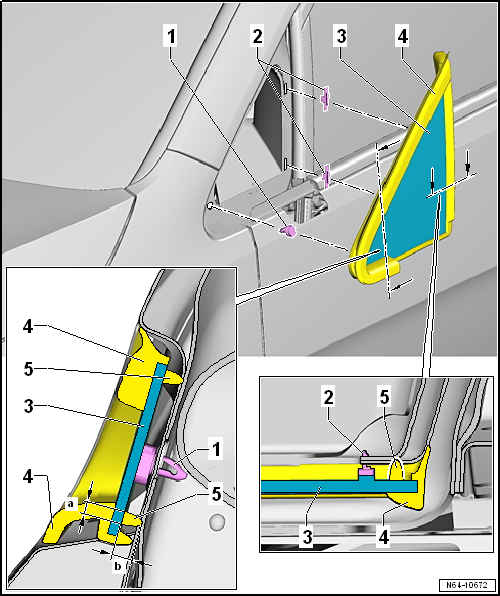

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview – front side window
This assembly overview covers the Volkswagen Golf Mk7 front side window: centring clip, retaining clips (qty 2), the integral seal, and the PUR adhesive sealant bead cross-section (6.5 mm × 10 mm).
| 1 - | Centring clip |
| 2 - | Retaining clip |
- Qty. 2
| 3 - | Front side window |
- Removing front side window → Chapter
| 4 - | Seal |
- Integral part of front side window.
| 5 - | PUR adhesive sealant |
- Cross section of bead: width = 6.5 mm -dimension a- height = 10 mm -dimension b- (including residual material on window glass and window flange).
- Minimum curing period → Chapter
