 Note
-
| |
Minor differences will be encountered on removal and
installation, depending on version. |
-
| |
For some versions the exhaust system may have to be
detached and the heat shield may have to be pushed aside. |
|
|
|
| – |
Remove bumper cover
→ Chapter. |
| – |

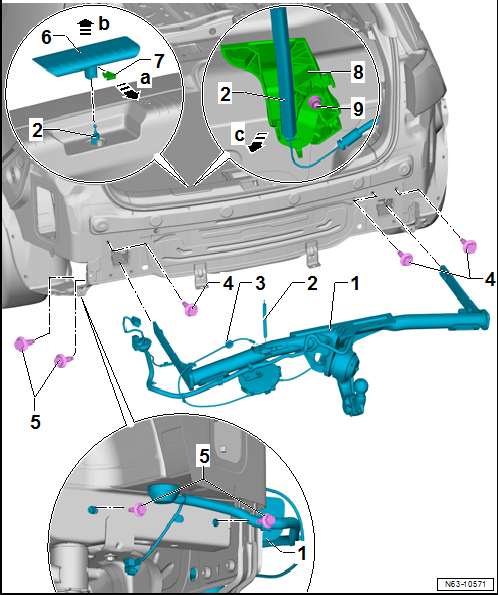

Pull off locking element -7- on release
lever -6--arrow a-. |
| – |
Pull release lever -6- off Bowden cable
-2--arrow b-. |
| – |
Pull Bowden cable -3- out of lock
carrier trim. |
| – |
Thread Bowden cable -2- out of guide
-8--arrow c-. |
| – |
Pull Bowden cable together with grommet -3-
out of vehicle. |
| – |
Pull towing bracket -1- in a parallel
movement out of longitudinal members. |
| – |

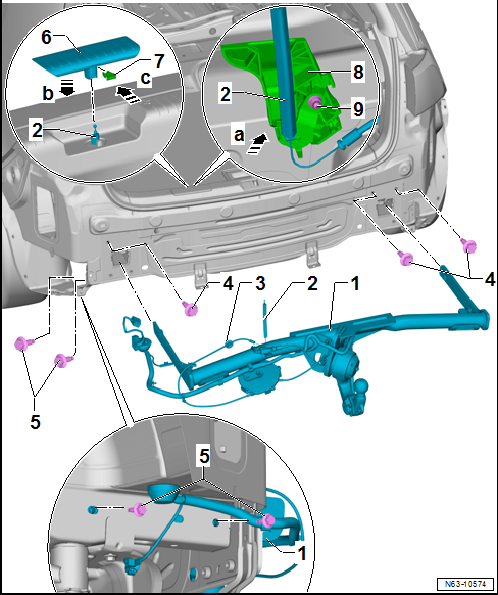

Installation is carried out in reverse order. |
 DANGER!
| The bolts -4- function as plugs
and seal the passenger compartment against exhaust fumes, and
must without exception be installed. |
|
| Ensure that grommet -3- on Bowden cable
is properly secured in cross panel. |
| – |
Perform functional check after installation of towing bracket. |
Questions & answers
Removing and installing towing bracket — Volkswagen Golf Mk7
How do I remove the Golf Mk7 towing bracket?
The exhaust system may need to be lowered for some versions. Unbolt the bracket from the rear body structure. Minor differences exist between versions.
1 -
Release lever
In the interior
2 -
Frame
In lock carrier trim
3 -
Grommet
In cross pane ...
Removing
WARNING
It is not permissible to loosen bolts other than
those specified.
...
