| Special tools and workshop equipment
required |
|
|
|
| |
|

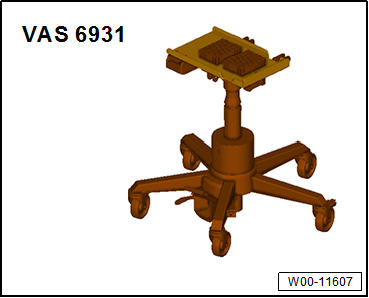

Engine and gearbox jack -VAS 6931- |
Note
| The removal and installation procedures may have to be modified
slightly depending on engine fitted. |
| – |
Loosen bracket for rear silencer and slightly lower using the engine
and gearbox jack -VAS 6931-
→ Rep. gr.26. |
| – |

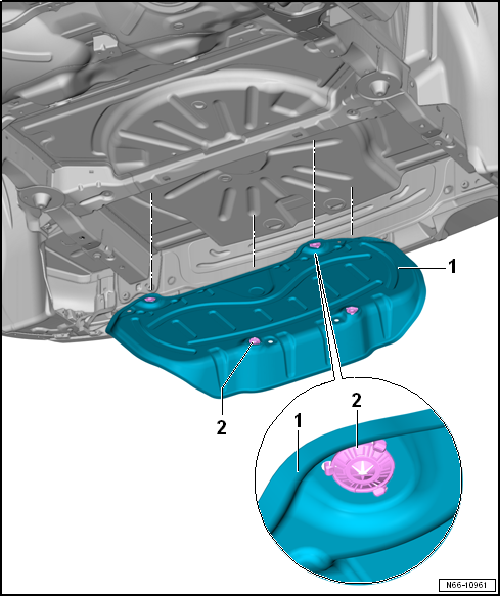

Loosen lock washers -2-. |
| – |
Remove heat shield -1-. |
| Installation is carried out in reverse order. |
