Volkswagen Golf Mk7 Service & Repair Manual: Dimensions – lettering on wing

This page gives the placement dimensions for wing emblems on the Volkswagen Golf Mk7, using GTI as the reference example valid for all emblem variants — 5.0 ± 1 mm from the upper edge of the lettering to the wing edge.

  Note

The dimensions shown here for “GTI” as an example are valid for all emblems.

Dimensions – lettering on wing

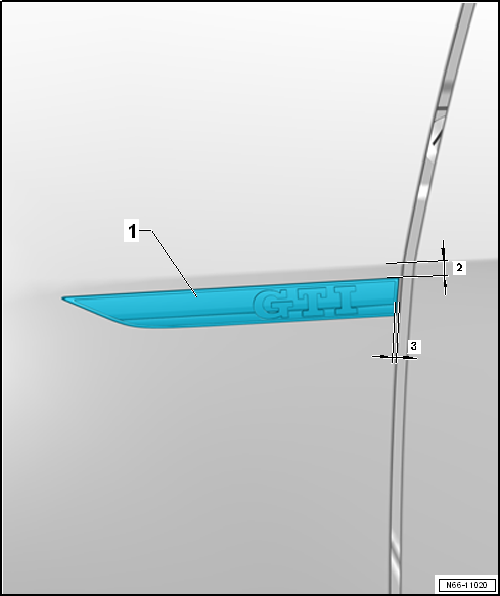

1 -  Emblem
  • Variations in appearance possible depending on the (special) model.
2 -  Height dimension
  • 5.0 ± 1 mm, from upper edge of lettering to edge of wing
3 -  Horizontal dimension
  • 1.5 ± 1 mm, from outer edge of wing to lettering
