Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - lock carrier

This assembly overview identifies every component of the Volkswagen Golf Mk7 lock carrier — including R-Line and R optional-equipment variants — with the mounting plate, air guide and support bracket, cross-referenced to the Electronic Parts Catalogue (ETKA) and the removal/service-position chapters.

Assembly overview - lock carrier
Volkswagen R GmbH, optional equipment, “R Line” and “R”

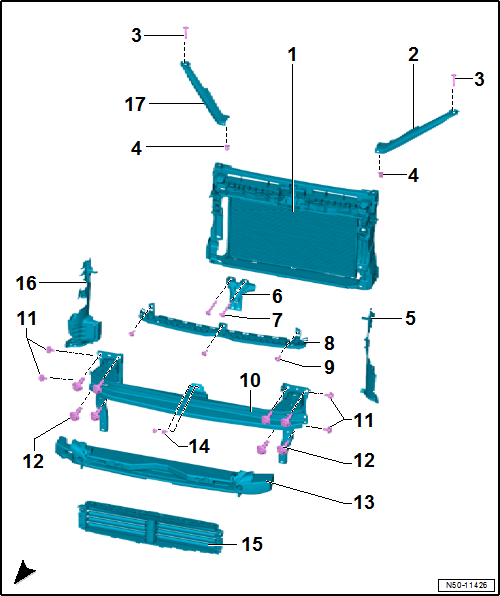

Assembly overview - lock carrier

1 -  Lock carrier with add-on parts
  • Allocation → Electronic Parts Catalogue “ETKA”
  • Removing and installing → Chapter
  • Moving to and back from service position → Chapter
2 -  Mounting plate
  • Left
3 -  Bolt
  • Qty. 1 on each side
  • 8.0 Nm
4 -  Bolt
  • Qty. 2 on each side
  • 8.0 Nm
5 -  Air guide
  • Left
  • Different versions, allocation → Electronic Parts Catalogue “ETKA”
6 -  Support for lock carrier
7 -  Bolt
  • Qty. 2 on each side
  • 12 Nm
8 -  Centre guide profile
9 -  Bolt
  • Qty. 3 or 4, depending on model
  • 8.0 Nm
10 -  Bumper carrier
11 -  Bolt
  • Qty. 2 on each side
  • 8.0 Nm
12 -  Bolt
  • Qty. 4 on each side
  • 55 Nm
13 -  Foam element
  • Allocation → Electronic Parts Catalogue “ETKA”
14 -  Bolt
  • Qty. 2
  • 12 Nm
15 -  Adjustable air duct
  • Allocation → Electronic Parts Catalogue “ETKA”
16 -  Air guide
  • Right
  • Different versions, allocation → Electronic Parts Catalogue “ETKA”
17 -  Mounting plate
  • Right

    Questions & answers

    Assembly overview - lock carrier — Volkswagen Golf Mk7

    What does the Golf Mk7 lock carrier assembly overview show?
    The lock carrier with all add-on parts, mounting bolts, guide pins, air guides, centring bushes and torque values. It references ETKA for part numbers.
    What torque are the Golf Mk7 lock carrier bolts?
    The assembly overview lists specific Nm values for each fastener — hexagon nuts, centring pins and support bolts. These must be followed exactly to maintain crash safety.
    Does the Golf Mk7 R-Line have a different lock carrier?
    The R-Line and R models may have a modified lock carrier to accommodate larger air intakes and different bumper geometry. The manual shows a separate overview for these variants.
