 Note
| Removal and installation are only described for the left
window slot inner seal. Removal and installation of the right
window slot outer seal are similar. |
|
|
|
| – |
Remove front door trim
→ General body repairs, interior; Rep. gr.70. |
| – |

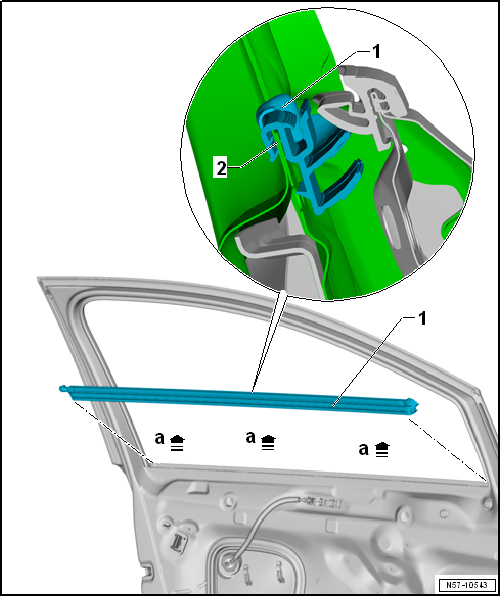

Lift off window slot inner seal -1-
uniformly from flange -2- without bending
or distorting it. |
| – |
Centre window slot inner seal -1--arrows a-
and press it uniformly and by hand at front onto door flange
-2-. |
Questions & answers
Removing and installing window slot inner seal — Volkswagen Golf Mk7
What is the Golf Mk7 window slot inner seal?
A rubber seal on the inside of the door window aperture that wipes against the inner surface of the glass, preventing water and dust from entering the cabin.
How do I replace the Golf Mk7 inner window seal?
Remove the door trim, peel back the vapour barrier, pull the old seal out of its channel and press the new one in.
Removing
Note
The core of the window slot outer seal is a metal insert.
If it is bent or di ...
