Volkswagen Golf Mk7 Service & Repair Manual: Identification of Valeo heater and air conditioning unit

Note: correct component assignment is critical — combining different makes is not permitted on the Volkswagen Golf Mk7. This page gives the exact steps to identify a Valeo unit, starting with removing the left centre console trim.

Note Pay attention to correct assignment when replacing components. The combination of different makes of component is not permitted → Electronic Parts Catalogue. –  Remove left centre console trim in footwell → General body repairs, interior; Rep. gr.68.

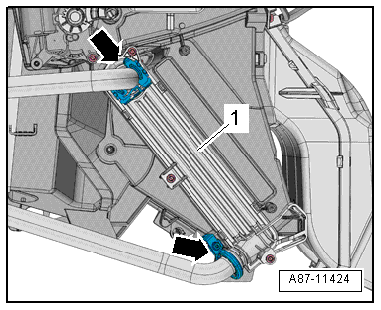

If the coolant pipes are arranged as shown in the illustration, the manufacturer of the heater and air conditioning unit is Valeo.

Questions & answers

Identification of Valeo heater and air conditioning unit — Volkswagen Golf Mk7

How do I identify a Valeo heater unit on the Golf Mk7?

The Valeo label is on the heater box housing, showing the part number and manufacturing data. Cross-reference with ETKA.
