Using torque wrench -V.A.G 1410-, hose clamps -3094-, spring-clip pliers -VAS 5024A- and drip tray -VAS 6208-, this page covers removing the Volkswagen Golf Mk7 auxiliary heater's coolant pipes.
| Special tools and workshop equipment
required |
|
|
|

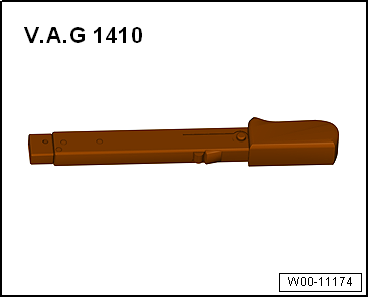

| Torque wrench -V.A.G 1410- (4…20 Nm) |
|
|
|
| Hose clamps, up to 25 mm -3094- |
|
|
|
| Pliers for spring-type clips -VAS 5024A- |
|
|
|
| – |

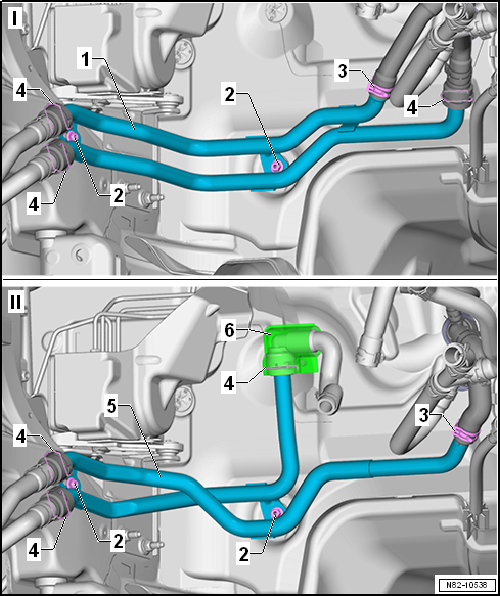

Loosen spring-type clip -3-. |
| – |
If fitted (only on specific vehicles), slide protective
grommet -6- to one side. |
| – |
Unclip coolant hoses -4- and
pull them off coolant pipes -1- and
-5-. |
| – |
Remove coolant pipes -1- and
-5-. |
| – |
Install in reverse order. |
|
|
|
|
Component to be tightened |
Specified torque |
| Collar nut |
8 Nm |
| Nose insulation; Assembly overview - noise insulation
→ General body repairs, exterior; Rep. gr.66. |
|
|
|
