Volkswagen Golf Mk7 Service & Repair Manual: Dimensions – lettering on rear lid, “R-Line”
This page gives the exact placement dimensions for R-Line model lettering on the rear lid — 73 ± 1 mm from the upper edge to the tail light, and 50 ± 1 mm horizontally from the outer edge.
Note

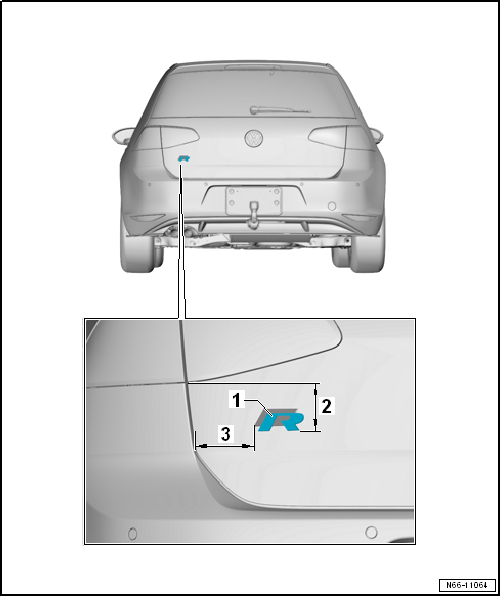

| When fitting the lettering, observe the fitting notes → Anchor. |
| 1 - | Lettering |
- Model designation
| 2 - | Height dimension |
- 73 ± 1 mm, from upper edge of lettering to tail light.
| 3 - | Horizontal dimension |
- 50 ± 1 mm, from outer edge of rear lid to lettering
