| Removing and installing
→ Chapter |
| Change coolant after renewing. |
| Pull out retaining clip to remove. |
| 5 - |
Radiator outlet coolant temperature sender -G83- |
| Removing and installing
→ Chapter |
| Pull out retaining clip to remove. |
| Pull out retaining clip to remove. |
| Not fitted on all vehicles |
| 13 - |
Radiator for charge air cooling circuit |
| Removing and installing
→ Chapter „Removing and installing radiator“ |
| Removing and installing
→ Heating, air conditioning; Rep. gr.87. |
| Pull out retaining clip to remove. |
| Connecting coolant hose with plug-in connector to radiator |
| – |
Remove old O-ring -2- in
coolant hose -3-. |
| – |
Moisten new O-ring with coolant and insert into coolant
hose. |
| – |
Push coolant hose into connection -1-
until it audibly engages. |
| – |
Press again on coolant hose and check plug-in connector is
engaged correctly by pulling hose back. |
|
|
|
Questions & answers

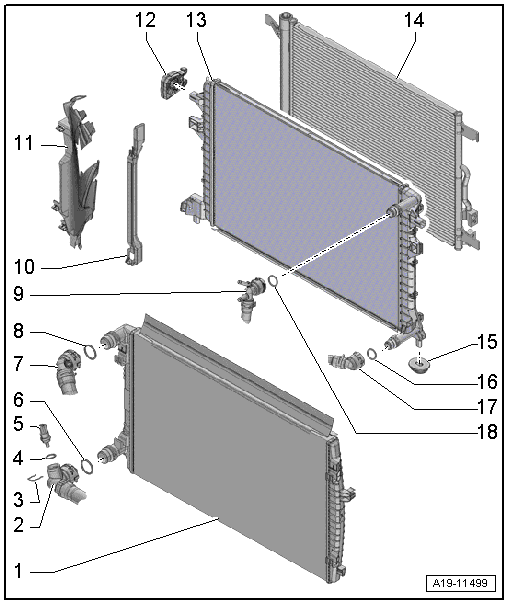

Assembly overview - radiator and radiator fan — Volkswagen Golf Mk7
What does the Golf Mk7 1.4 TSI radiator assembly show?
Radiator, mounting rubbers, drain plug, upper/lower hose connections and condenser mounting points.
1 -
Bolt
5 Nm
2 -
Radiator cowl
Removing and installing
→ Chapter
3 - ...
