Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - long noise insulation

This assembly overview covers the Volkswagen Golf Mk7 long noise insulation panel — an extended version of the short panel, removed the same way by pulling it backward off the lock carrier.

  Note
The removal and installation procedures may have to be modified slightly depending on engine fitted.

Assembly overview - long noise insulation

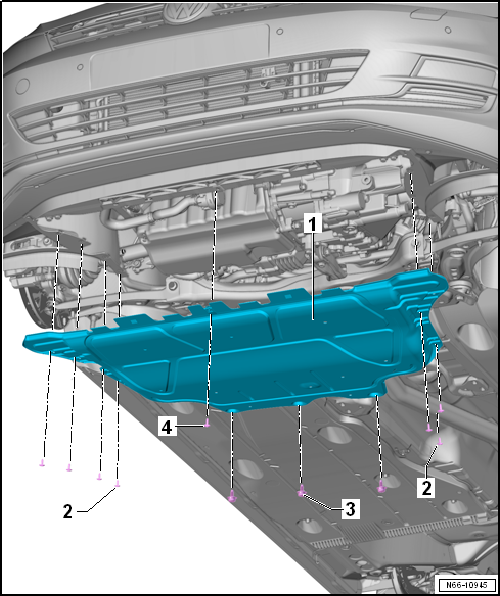

1 -  Short noise insulation
  • Removing
–  Remove bolts -2-, -3- and -4-.
–  Pull out noise insulation off lock carrier to the back.
2 -  Bolt
  • Qty. 3 on left
  • Qty. 4 on right
  • 2.0 Nm
3 -  Bolt
  • Micro-encapsulated; renew after each removal
  • Qty. 3
  • 6.0 Nm
4 -  Bolt
  • 1 on lock carrier
  • 1 Nm
