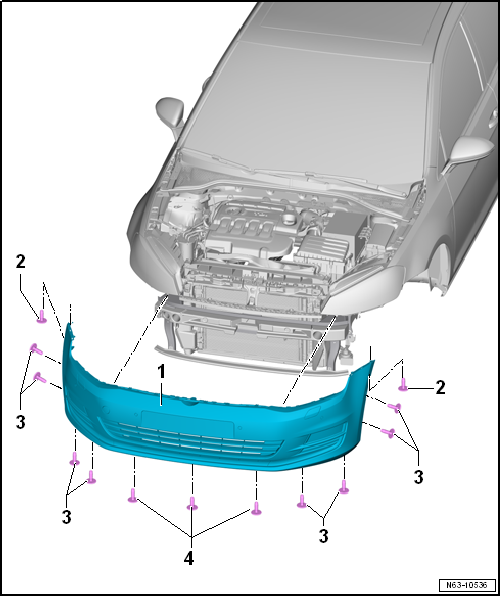

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - bumper cover
This assembly overview covers the Volkswagen Golf Mk7 front bumper cover (PP/EPDM material), noting minor differences depending on vehicle model — the upward-pointing bolts are torqued to 2.0 Nm.
Note| Minor differences may be encountered in respect of bumper cover, depending on vehicle model. |
| 1 - | Bumper cover |
- Material PP/EPDM
- Removing and installing → Chapter.
| 2 - | Bolt |
- Left and right
- Points upwards
- 2.0 Nm
| 3 - | Bolt |
- Qty. 5 on each side
- Bolted to wheel housing liner
- 2.0 Nm
| 4 - | Bolt |
- Qty. 3
- Bolted to lock carrier.
- 2.0 Nm
Questions & answers
Assembly overview - bumper cover — Volkswagen Golf Mk7
What does the Golf Mk7 front bumper cover assembly show?
The bumper cover (PP/EPDM material), mounting bolts, guide brackets, clips, lower air deflector, and the fog light or cornering light aperture.
What material is the Golf Mk7 front bumper cover?
PP/EPDM — a flexible polypropylene/rubber blend that absorbs minor impacts without cracking. It can be repaired with plastic welding if cracked.
