Volkswagen Golf Mk7 Service & Repair Manual: Front brakes

The Volkswagen Golf Mk7 front brake system type is indicated by the PR number on the vehicle data sticker — this page explains where to find that sticker, in the spare wheel well.

The type of brake system installed in the vehicle is indicated among other things by the corresponding PR number on the vehicle data sticker.

The vehicle data sticker can be found in the spare wheel well and in the service schedule.

–	The relevant information on the installed braking system can also be viewed in the ELSA/vehicle-specific notes.

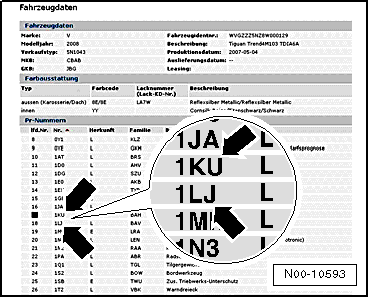

In this example the rear brake “1KU” is installed in the vehicle.

Allocation → Electronic Parts Catalogue (ETKA).

The following table explains the PR numbers. These are important for the brake caliper/brake disc and brake pads.

Front brakes

Engine	PR No.	Front brakes
1.2 l - 63; 77 kW TSI ^{1; 3)}	1ZF	FS III (15”)
1.6 l - 66; 77 kW TDI ^{1; 3)}	1ZF	FS III (15”)
1.2 l - 63; 77 kW TSI ^{1; 2)}	1ZE / 1ZP	PC57 (15”)
1.4 l - 90 kW TSI ¹⁾
1.4 l - 103 kW TSI ¹⁾
1.6 l - 66; 77 kW TDI ^{1; 2)}
1.6 l - 81 kW TDI ¹⁾
2.0 l - 110 kW TDI	1ZA / 1ZD	PC57 (16”)
2.0 l - 135 kW TDI	1ZA / 1ZD / 1ZB ²⁾
2.0 l - 162 kW TSI	1ZB
2.0 l - 169 kW TSI	1LJ	C60 (17”)
2.0 l - 206; 213, 221 kW TSI	1LM	C60 (17”)
