Volkswagen Golf Mk7 Owners Manual: Fuses in the vehicle

Fig. 228 shows the dash-panel fuse box cover position for left-hand drive (A) and right-hand drive (B) Volkswagen Golf Mk7 models, and Fig. 229 shows the engine compartment fuse box with its plastic pliers. This page explains how to access both boxes safely.

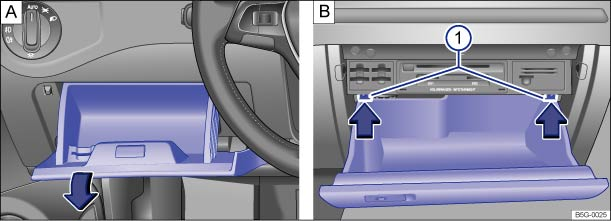

Fig. 228 Fuse box cover in the dash panel: A: left-hand drive vehicle, to the left-hand side of the steering wheel B: right-hand drive vehicle, on the driver side

Fig. 229 In the engine compartment: cover ① of fuse box with plastic pliers ②

First read and observe the introductory information and safety warnings

Fuses must always be replaced by a new fuse with the same amp rating (same colour and markings) and size.

Fuse designs

  • Standard flat blade fuse (ATO®).
  • Small flat blade fuse (MINI®).
  • JCASE® fuse.

Colour coding of fuses

Colour Amp rating in ampere (ATO® / MINI®) Amp rating in ampere (JCASE®)
Black 1
Light brown 5
Brown 7.5
Red 10 50
Blue 15 20
Yellow 20 60
White or clear 25
Green 30 40
Orange 40
pink 30 30

Left-hand drive: opening the fuse box in the dash panel

  • Open the stowage compartment on the driver side and pull the left side forcefully in the direction of the arrow A. You may need to use some force to do this.
  • To install, press the stowage compartment into the mounts on the dash panel until it audibly clicks into place on both sides.

Right-hand drive: opening the fuse box in the dash panel

  • Open the stowage compartment on the front passenger side B.
  • Empty stowage compartment if necessary.
  • Push the catches ① up in the direction of the arrow while opening stowage compartment until the fuse carrier can be accessed.
  • To install, carefully push the stowage compartment forwards beyond the resistance of the catches ①.

Opening the fuse box in the engine compartment

  • Open the bonnet .
  • Press the release buttons in the direction of the arrow to release the fuse box cover.
  • Lift off the cover.
  • To install, position the cover on the fuse box and press it downwards until the cover audibly clicks into place on both sides.

In some vehicles, a pair of plastic pliers for removing fuses is located on the inside of the cover of the fuse box in the engine compartment.

NOTICE

  • Remove the covers for the fuse boxes carefully and install them again properly so as to avoid damage to the vehicle.
  • Fuse boxes must be protected from dirt and moisture when opened. Dirt and moisture in the fuse boxes can damage the electrical system.

This chapter does not refer to all the fuses located in the vehicle. These should be changed only by a qualified workshop.

    Questions & answers

    Fuses in the vehicle — Volkswagen Golf Mk7

    How do I access the Golf Mk7 dashboard fuse box?
    Open the driver's door, locate the cover on the left side of the dash (LHD) or on the driver side (RHD), grip the cover and pull it towards you to release the clips.
    How do I access the Golf Mk7 engine bay fuse box?
    Open the bonnet, remove the cover from the fuse box (usually with clip releases), and use the plastic pliers attached inside the cover to pull fuses.
    What are the plastic pliers in the Golf Mk7 fuse box for?
    They are a fuse puller — grip a fuse with the pliers and pull it straight out. Using fingers or metal tools risks breaking the fuse or causing a short circuit.
