Move glove compartment lid to service position
→ Chapter. |
| – |
Disconnect connector for glove compartment light switch
-E26- on damper element -1-. |
| – |

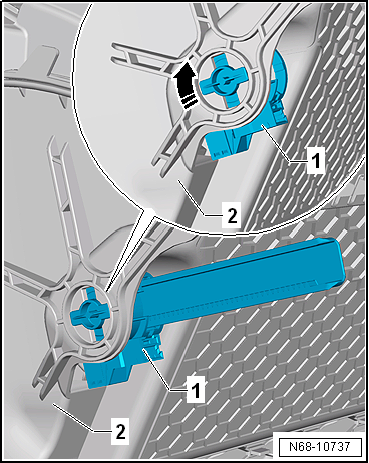

Turn damper element -1-
clockwise -arrow- by 90° (1/4
turn) and remove it from glove compartment
-2-. |
|
|
|
| – |

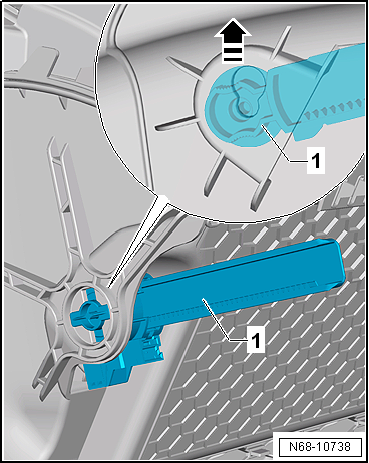

Move/release rack -1- in
-direction of arrow- and remove it
from glove compartment lid. |
 Note
| Before installing, check all fasteners for damage and renew
if necessary. |
| Installation is carried out in reverse order. |
|
|
|
Questions & answers
Removing and installing damper element for glove compartment lid — Volkswagen Golf Mk7
How do I remove the Golf Mk7 glove box damper?
Move the lid to service position, disconnect the light switch -E26- connector, unbolt and remove the damper.
Moving to service position
–
Open glove compartment lid -2-.
–
Push limit stops -1- for glove
comp ...
Special tools and workshop equipment
required
Torque wrench -V.A.G 1783-
...
