Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - subframe

This assembly overview covers the Volkswagen Golf Mk7 subframe: the anti-roll bar with rubber bush, and a nut always renewed after removal, torqued to 65 Nm using a counterhold on the joint stub.

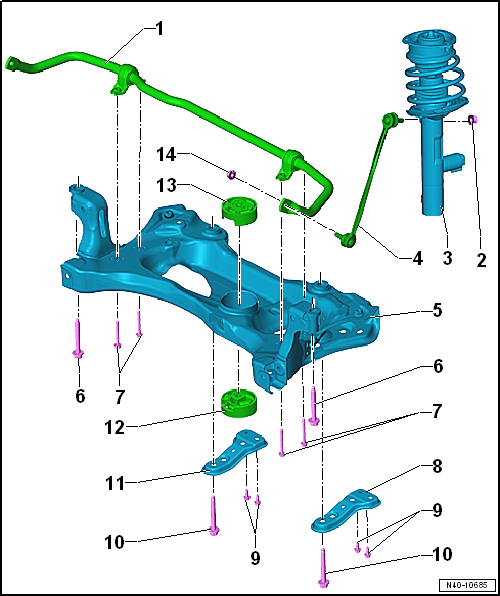

Assembly overview - subframe

1 -  Anti-roll bar with rubber bush
Removing and installing → Chapter
2 -  Nut
When tightening, counterhold on multipoint socket of joint stub.
Renew after removing
65 Nm
3 -  Suspension strut
4 -  Coupling rod
Removing and installing → Chapter
5 -  Subframe
Fixing position → Chapter
Lowering → Chapter
Removing and installing without steering rack → Chapter
Removing and installing with steering rack → Chapter
6 -  Bolt
Renew after removing
70 Nm +180°
7 -  Bolt
Renew after removing
20 Nm +180°
8 -  Left:
9 -  Bolt
Renew after removing
50 Nm +90°
10 -  Bolt
Renew after removing
70 Nm +180°
11 -  Right support
12 -  Lower bonded rubber bush for pendulum support
Renewing → Chapter.
13 -  Upper bonded rubber bush for pendulum support
Renewing → Chapter.
14 -  Nut
When tightening, counterhold on multipoint socket of joint stub.
Renew after removing
65 Nm
