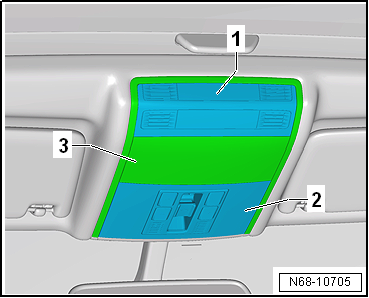

Unclip cover -1- from storage
compartment in roof headliner -3-. |
| – |
Remove front interior light -WX1--2-
→ Electrical system; Rep. gr.96. |
| – |
If necessary, remove interior mirror covers
→ Chapter. |
|
|
|
| – |

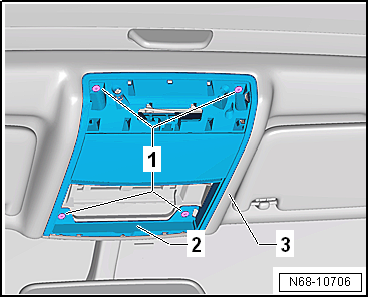

Remove storage compartment in roof headliner
-2- from reinforcing frame in
moulded headliner -3-. |
 Note
| Before installing, check all fasteners for damage and renew
if necessary. |
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - storage compartment in roof
headliner“ |
|
|
 |
Questions & answers
Removing and installing storage compartment in roof headliner — Volkswagen Golf Mk7
How do I remove the Golf Mk7 roof storage compartment?
Switch off ignition, unclip the cover, remove the front interior light -WX1-, unbolt and remove the compartment.
Removing
–
Remove glove compartment
→ Chapter.
–
Place glove compartment on a soft surf ...
