| Special tools and workshop equipment
required |
|
|
|
| |

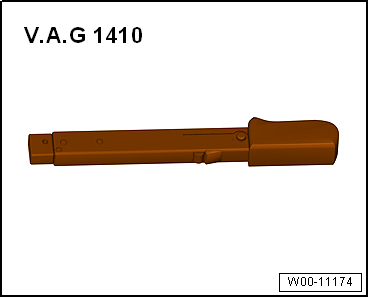

Torque wrench -V.A.G 1410- |
| Vehicles with side airbag |
WARNING
| Observe general safety regulations when working on
airbag, belt tensioner and battery isolator units
(pyrotechnic components)
→ Chapter. |
|
| – |
Disconnect battery
→ Electrical system; Rep. gr.27. |
|
|
|
| Continued for all vehicles |
| – |
Remove bench seat
→ Chapter. |
| – |
Fold down rear seat backrest. |
| – |

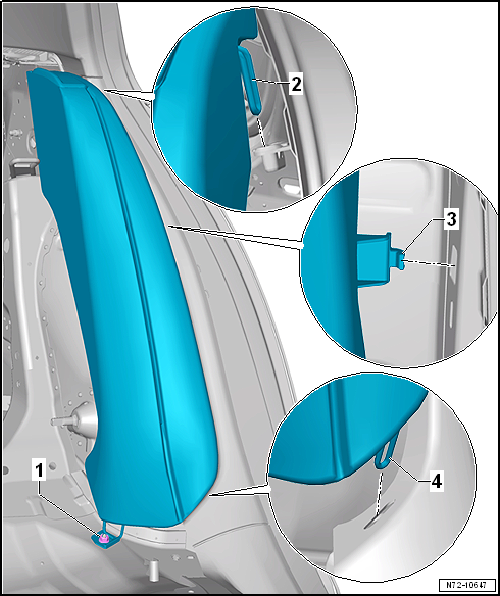

Detach retaining lug -3- from body. |
| – |
Pull side padding with retaining brackets -2-
and -4- upwards. |
| Vehicles with side airbag |
| – |
Disconnect wire for side airbag on side padding. |
| Install in reverse order, but note the following: |
| Vehicles with side airbag |
WARNING
| Ensure that nobody is in vehicle. |
|
| – |
Connect vehicle battery
→ Electrical system; Rep. gr.27. |
 Note
| If airbag warning lamp -K75- indicates a fault following
installation, event memory must be read, deleted and then read
again → Vehicle
diagnostic tester. |
| |
→ Chapter „Assembly overview - side padding“ |
|
|
|
