Volkswagen Golf Mk7 Service & Repair Manual: Overview of fitting locations - front control motors, air conditioning system with electric/manual controls, RHD vehicles

This overview maps RHD Volkswagen Golf Mk7 electric/manual AC control motors: the temperature flap motor -V68- and the air distribution flap motor.

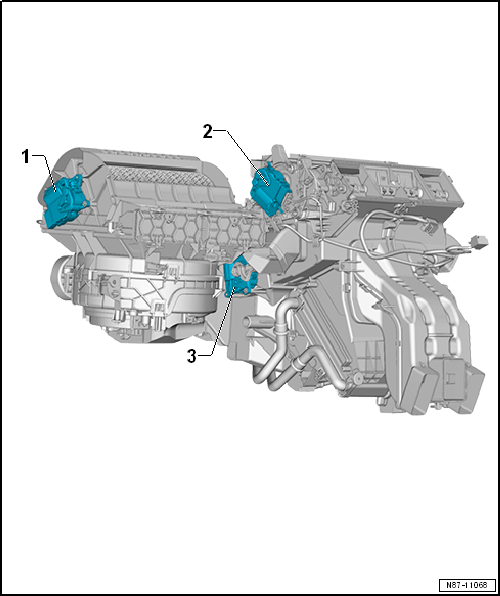

Overview of fitting locations - front control motors, air conditioning system with electric/manual controls, RHD vehicles

1 -  Temperature flap control motor -V68-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
2 -  Air distribution flap control motor -V428-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
3 -  Air recirculation flap control motor -V113-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
