Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - luggage compartment side trim, estate

This assembly overview covers the Volkswagen Golf Mk7 estate luggage compartment side trim, left side shown (right is a mirror image), with a clip to renew if damaged or deformed.

  Note
The illustration shows the luggage compartment side trim on the left side. The right-hand side is similar (mirror image of left-hand side).

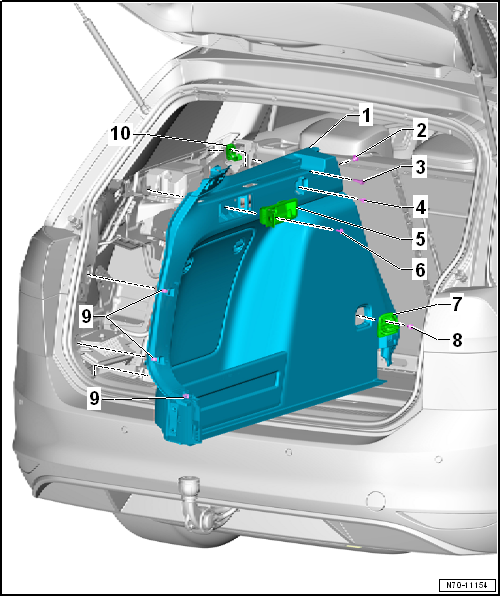

Assembly overview - luggage compartment side trim, estate

1 -  Luggage compartment side trim
  • Removing and installing → Chapter
2 -  Clip
  • Renew clip if damaged or deformed.
3 -  Bolt
  • 1.5 Nm
4 -  Bolt
  • 7 Nm
5 -  Remote backrest release mechanism
  • Removing and installing → Chapter
6 -  Bolt
  • 7 Nm
7 -  Tie-down ring
  • Removing and installing → Chapter
8 -  Bolt
  • 8 Nm
9 -  Retaining clip
  • Insert in luggage compartment side trim
  • Remove any retaining clips left in body mountings using removal tool -T40280-
  • Renew any damaged or deformed retaining clips
10 -  Bag hook
  • Clipped in at rear of luggage compartment side trim -1
