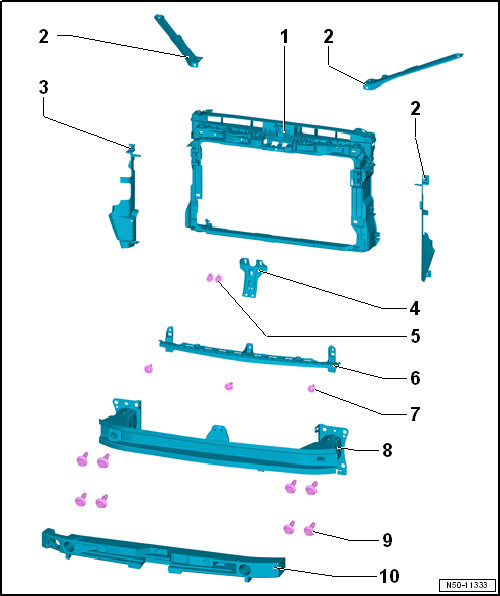

Assembly overview - lock carrier, NAR

1 -  Lock carrier with add-on parts
  • Removing and installing → Chapter
  • Moving to and back from service position → Chapter
2 -  Mounting plate
  • Left and right
3 -  Air guide
  • Left and right
4 -  Support for lock carrier
5 -  Hexagon nut
  • Qty. 2
  • 12 Nm
6 -  Centre guide profile
7 -  Bolt
  • Qty. 3
  • 8.0 Nm
8 -  Bumper carrier
9 -  Bolt
  • Qty. 4 on each side
  • 55 Nm
10 -  Foam element
