Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - cylinder block, gearbox end

This assembly overview covers the Volkswagen Golf Mk7 gearbox-end cylinder block: a bolt torqued to 60 Nm plus 90°, and the flywheel — which fits in only one position.

  Note
For assembly work, secure engine to engine and gearbox support → Chapter.

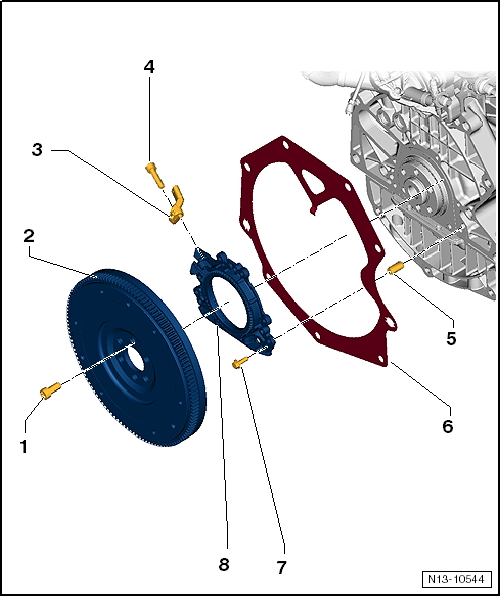

Assembly overview - cylinder block, gearbox end

1 -  Bolt
Renew
60 Nm + 90°
2 -  Flywheel
Removing and installing → Chapter
Fitting possible in one position only.
3 -  Engine speed sender -G28-
Removing and installing → Chapter
4 -  Bolt
Specified torque → Chapter
5 -  Dowel pin
Qty. 2
6 -  Intermediate plate
Do not damage or bend when assembling.
Installing → Fig..
7 -  Bolt
Specified torque and tightening sequence → Fig.
8 -  Sealing flange with sender wheel and oil seal
Renew sealing flange complete with oil seal and sender wheel only.
Removing and installing → Chapter

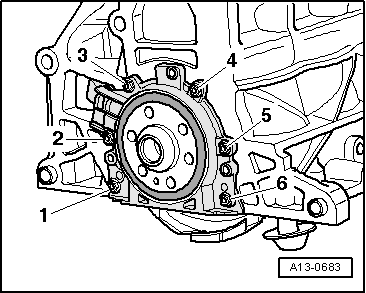

Sealing flange on gearbox side - specified torque and tightening sequence
–  Tighten bolts in stages as follows:


Assembly overview - cylinder block, gearbox end

Stage Bolts Specified torque
1 -1 … 6- Screw in to contact by hand
2 -1 … 6- in diagonal sequence and in stages; final torque 10 Nm


Install intermediate plate.

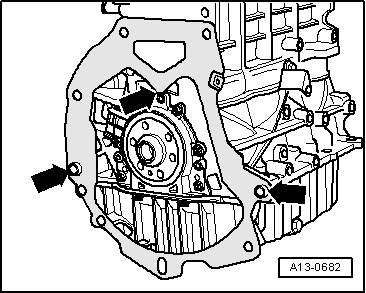

–  Attach intermediate plate to sealing flange -arrow at top- and push onto dowel sleeves -arrows at bottom-.


Assembly overview - cylinder block, gearbox end
