| The following specifications must be obtained: |

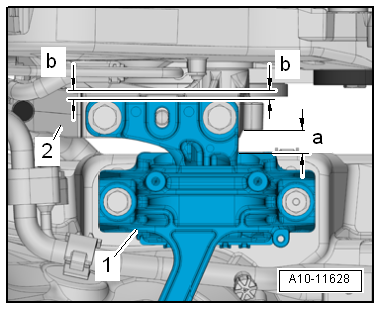

| There must be a distance of -a-
= 10 mm between engine support -2-
and engine mounting -1-. |
| Side surface of engine support casting
-2- must be located parallel to support arm of engine
mounting -1-. |
| Distance -b- = distance
-b-. |
 Note
| Distance -a- = 10 mm can be
checked with a metal rod of suitable size, or similar. |
| – |
If the dimension is too small or too high, adjust assembly
mountings
→ Chapter. |
|
|
|
Questions & answers
Checking adjustment of assembly mountings (engine and gearbox mountings) — Volkswagen Golf Mk7
How do I check Golf Mk7 engine mounting alignment?
Measure the position of alignment marks on the mounts relative to the body and engine. If they are out of specification, adjustment is needed.
Remove noise insulation
→ General body repairs, exterior; Rep. gr.66.
– ...
Procedure
–
Remove battery tray
→ Electrical system; Rep. gr.27.
...
