Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing evaporator temperature sensor -G308-, RHD vehicles

Using removal wedge -3409-, this page covers removing the RHD Volkswagen Golf Mk7 evaporator temperature sensor -G308- — the same AC-only fitment note applies as the LHD version.

Special tools and workshop equipment required

Removal wedge -3409-   Note Only vehicles with air conditioning system; on vehicles with heater, opening in heater is sealed off. Removing   Note Evaporator temperature sensor -G308- is accessible from footwell.

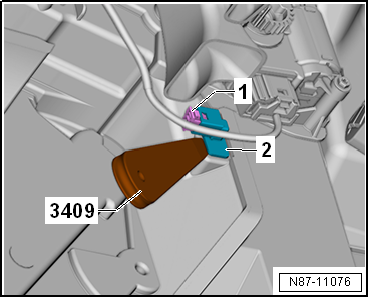

–  Release evaporator temperature sensor -G308- using removal wedge -3409-. –  Pull evaporator temperature sensor -G308--2- out of housing. –  Disconnect electrical connector -1-. Installing Install in reverse order.

Questions & answers

Removing and installing evaporator temperature sensor -G308-, RHD vehicles — Volkswagen Golf Mk7

How does Golf Mk7 -G308- removal differ on RHD?

Mirrored access. Same wedge tool and procedure.
