Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - underbody covers, hybrid vehicles

This assembly overview covers the hybrid (GTE) underbody covers: front and centre covers, and the rear underbody cover with its specific bolt (8 Nm) and nut (20 Nm) torques and spreader rivets.

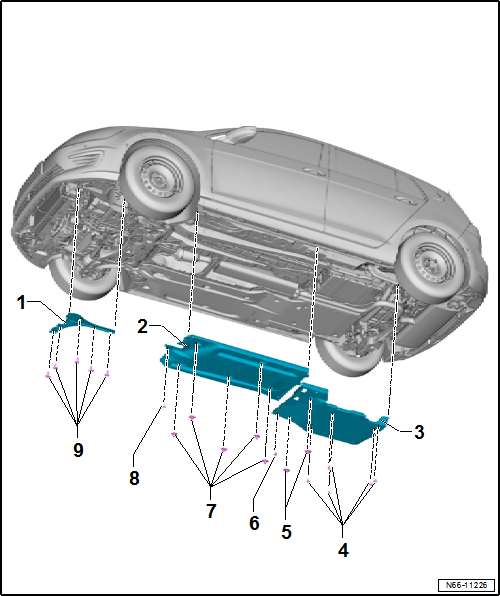

Assembly overview - underbody covers, hybrid vehicles

1 -  Front cover
  • Left and right
2 -  Underbody cover
  • Left and right
  • Removing and installing → Chapter
3 -  Rear underbody cover
4 -  Bolt
  • For rear underbody cover
  • Qty. 4 on each side
  • 8 Nm
5 -  Nut
  • For rear underbody cover
  • Qty. 2 on each side
  • 20 Nm
6 -  Spreader rivet
7 -  Nut
  • For underbody cover
  • With captive
  • Qty. 5 on each side
  • 2.0 Nm
8 -  Bolt
  • For underbody cover
  • Qty. 1 on each side
  • 2 Nm
9 -  Bolt
  • For front cover
  • Qty. 5 on left side
  • Qty. 6 on right side
  • 2 Nm
