Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - front door trim

This assembly overview covers the Volkswagen Golf Mk7 front door trim on the driver side (passenger side is analogous), shown for 4-door models (2-door is analogous).

  Note
  •   The assembly overview is shown for the front door trim on driver side. The assembly overview for the front passenger side is analogous.
  •   The assembly overview is shown for 4-door models. The assembly overview for 2-door models is analogous.

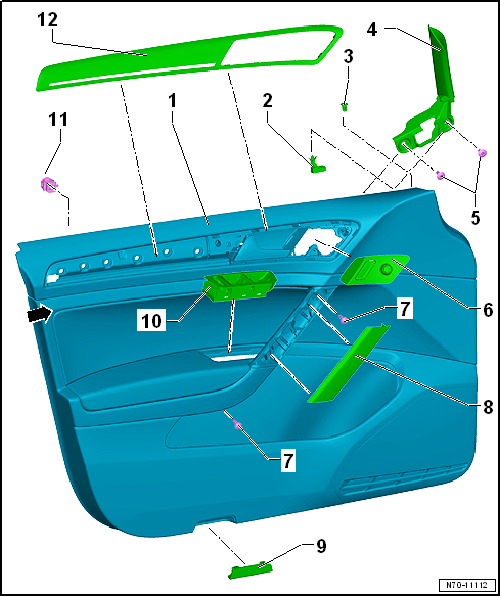

Assembly overview - front door trim

1 -  Door trim
  • Removing and installing → Chapter
2 -  Warning lamp for SAFE function of central locking -K133-
  • Driver door only
  • Overview of fitting locations → Electrical system; Rep. gr.96
3 -  Sleeve
  • For central locking deadlock function warning lamp -SAFE- -K133-
  • Driver door only
4 -  Mirror cover trim
  • Removing and installing → Chapter
5 -  Clip
  • Qty. 2
  • Renew any damaged or deformed clips
6 -  Exterior mirror adjuster -EX11-
  • With driver side interior locking button for central locking system -E308
  • Overview of fitting locations → Electrical system; Rep. gr.96
7 -  Bolt
  • Qty. 2
  • 4.5 Nm
8 -  Upper part of handle recess
9 -  Reflector
  • Overview of fitting locations → Electrical system; Rep. gr.96
10 -  Operating unit for window regulator in driver door -E512-
  • Overview of fitting locations → Electrical system; Rep. gr.96
11 -  Clip
  • 2-door model: qty 7
  • 4-door model and estate: qty 6 (one crash clip on top left -arrow-)
  • Insert into trim
  • Renew any damaged or deformed clips
12 -  Trim panel
  • Allocation → Electronic Parts Catalogue
  • Removing and installing → Chapter
