Using a flat scraper, M6×20 mm studs and sealant remover, this page covers removing the Volkswagen Golf Mk7 oil separator — remove the noise insulation first.
| Special tools and workshop equipment
required |
| Commercially available studs, M6x20 mm, qty. 2 |
| Sealant
→ Electronic Parts Catalogue |
| – |
Remove noise insulation
→ General body repairs, exterior; Rep. gr.66. |
|
|
|
| – |
Unscrew bolts -arrow- and push
charge air cooling pump -V188- to one side. |
|
|
|
| – |

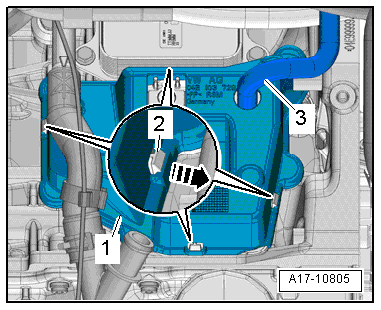

Pull off crankcase breather hose -3-. |
| – |
Release fasteners -2--arrow- on
cover -1- for oil separator and
detach cover. |
|
|
|
| – |

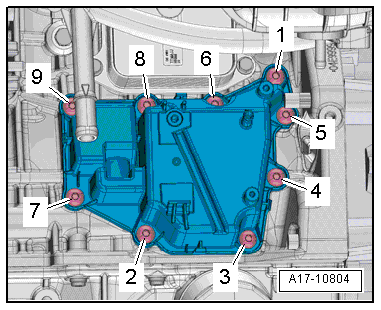

Loosen and unscrew bolts in the sequence
-9 … 1-. |
| – |
Carefully release oil separator from bonded joint. |
| Installation is carried out in the reverse order; note the
following: |
 Note
| Danger of soiling lubrication system. |
| Cover open parts of engine. |
| – |
Remove sealant residues from cylinder block with a flat
scraper. |
| – |
Remove any oil and grease from sealing surfaces. |
|
|
|
| – |

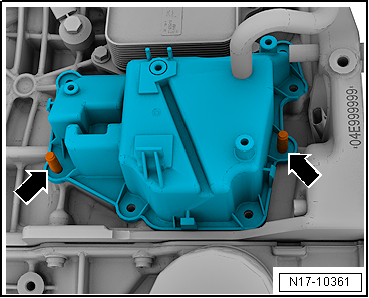

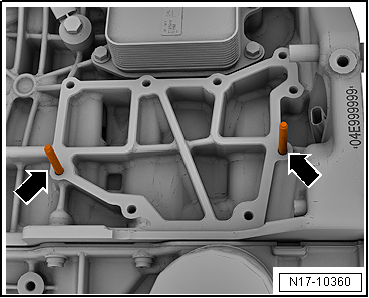

Screw 2 M6x20 mm studs a few turns into holes
-arrows-. |
Note
|
|
|
| Observe expiry date of sealing compound. |
|
|
|
| – |
Cut off nozzle on tube at front marking (diameter of nozzle
approx. 2.0 mm). |
| Danger of blocking lubrication system with excess sealant. |
| Do not apply sealant bead thicker than specified. |
| – |

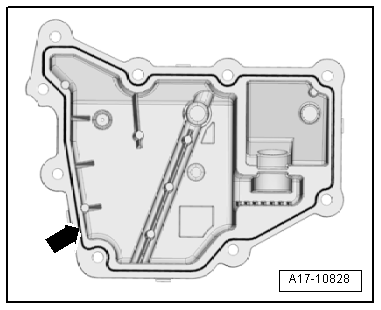

Apply bead of sealant -arrow-
onto clean sealing surface of oil separator as shown in
illustration. |
| Width of sealant bead: 2.0 mm |
| The oil separator must be installed within 5 minutes after
applying the sealant. |
|
|
|
| – |
Fit oil separator onto studs -arrows-
and push it onto crankcase. |
| – |
Oil separator, specified torque and tightening sequence
→ Fig. |
| Further installation steps are carried out in the reverse
order; note the following: |
| – |
Install noise insulation
→ General body repairs, exterior; Rep. gr.66. |
| Oil separator - specified torque and sequence
→ Fig. „“Oil separator - tightening torque and sequence”“ |
| → Chapter „Assembly overview - electric coolant pump“ |
|
|
|
