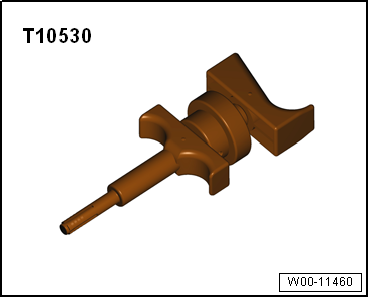

| Special tools and workshop equipment
required |
|
|
|
 Note
| The ignition coils are easier to remove when the engine is
warm. The grease used during installation of the ignition coils
makes it easier to remove them and the spark plug connectors
when the engine is warm. |
| Ignition coils with output stage and spark plug connectors
are available individually for repairs
→ ETKA (Electronic Parts Catalogue |
| Ignition coils “cyl. 2, 3 and 4”: |
|
|
|
| – |
Release hose clips -1- and
-2-, and remove air pipe. |
| All ignition coils (continued): |
|
|
|
| – |
Disconnect electrical connector -2-. |
|
|
|
| – |

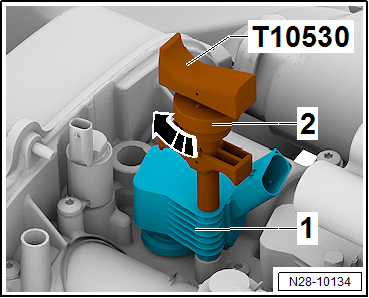

Push puller -T10530- into hole in ignition coil
-1- to stop. |
| – |
Tighten knurled nob -2- in
-direction of arrow-. |
|
|
|
| – |

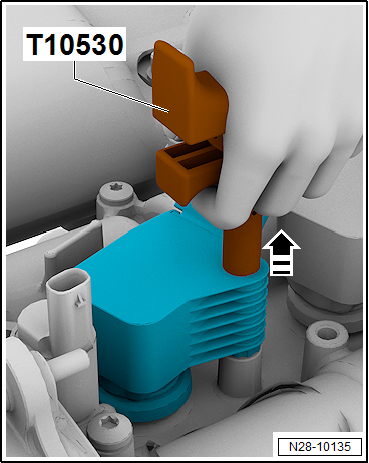

Pull ignition coil out of camshaft housing in
-direction of arrow- using puller
-T10530-. |
Note
| Ignition coil with output stage and spark plug connectors
are available individually for repairs
→ ETKA (Electronic Parts Catalogue |
| The spark plug connectors are removed from the ignition
coils by hand. |
| Installation is carried out in the reverse order; note the
following: |
| – |

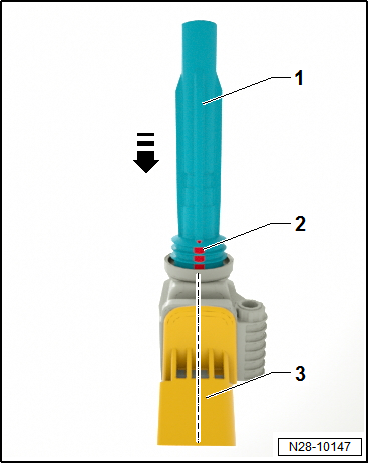

Slide spark plug connector -1-
by hand onto ignition coil as far as stop. |
|
|
|
| The vent drilling -2- must be
centred relative to connector housing -3-
while doing so. |
| – |
Insert all spark plugs with spark plug connector loosely
into spark plug recess. |
| – |
Align ignition coils with connectors and simultaneously push
all connectors onto ignition coils. |
| – |
Press ignition coils evenly onto spark plugs by hand (do not
use tool). |
| → Chapter „Assembly overview - ignition system“ |
|
|
|
